Methane is colourless, odourless gas that is is extremely volatile and a major fire risk.
Methane monitoring is a critical health and safety issue for industries where it is a byproduct.
Non-dispersive infrared (NDIR) is an effective method for measuring methane since it does not rely on the presence of oxygen.
Edinburgh Sensors* is specialises in Infrared (IR) Gas Sensors.
Methane monitoring can be achieved with infrared gas sensors because the gas absorbs IR light at a specific wavelength.
Within the detector, an IR light source is placed at one end and an absorbance detector at the other end, with an optical filter that will exclude all wavelengths except from where methane absorbs IR light. As air fills the chamber, methane particles begin to absorb the IR radiation. As methane concentration increases and more light is absorbed, the IR light signal at the detector decreases, setting off the sensor.
*Edinburg Sensors origin from UK have designed and manufactured a comprehensive range of gas sensor based on non-dispersive Infared (NDIR), fail safe gas sensing technology since 1980.

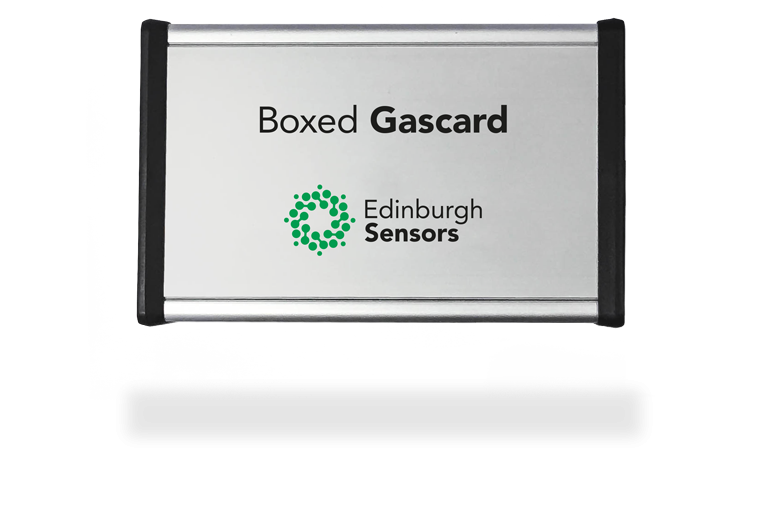

Edinburg Sensors Boxed CO Gascard
Edinburg Sensors Boxed CH4 Gas Card Features
- Modern electronics platform with the increased power and versatility of fast microprocessors
- Wide operating voltage range (7 V – 30 V)
- True RS232 communications for control and data
- On-board Barometric Pressure Correction in the range 800 mbar – 1150 mbar
- Field Replaceable IR Source
- Extensive Temperature compensation
- Benchtop Solution – Ideal for Research Projects

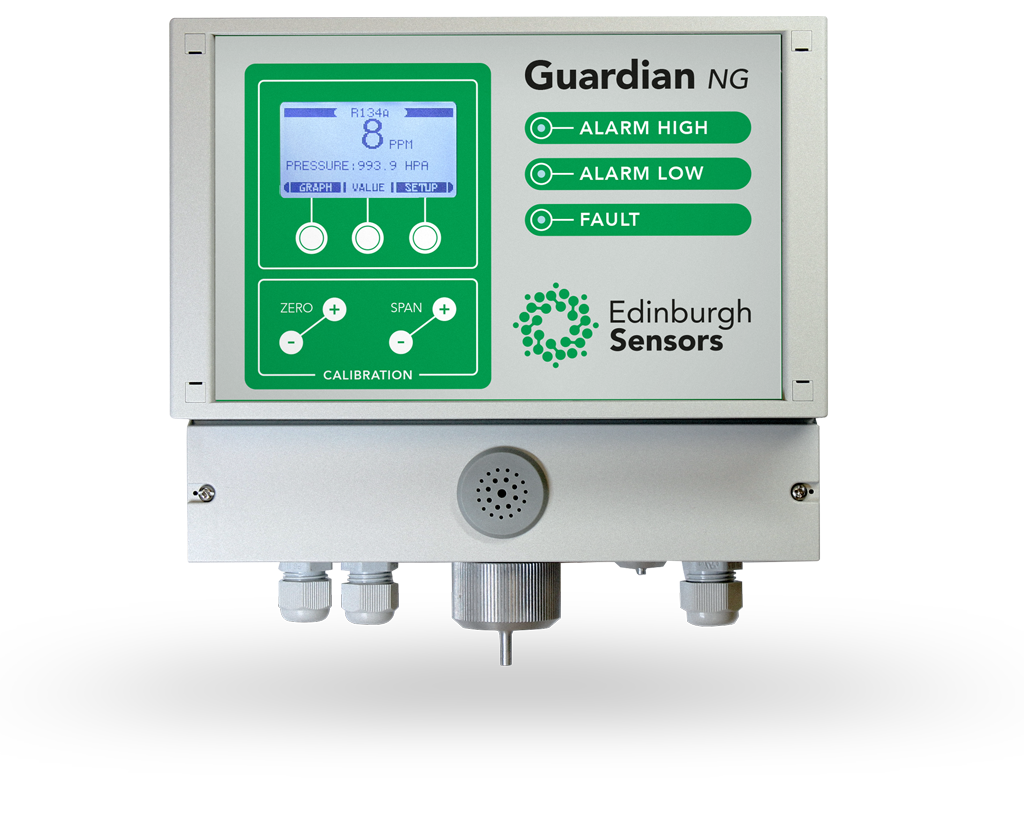

Edinburg Sensors Guardian NG / NG DC CO Monitor
Edinburg Sensors Guardian NG /NG DC CH4 Features
- True Volume % readout over a wide range of pressures (Pressure Compensated)
- Easier Gas Monitor Set up Using On Screen Menus
- Graphical display of historic readings possible over a user-defined period.
- Relay and fault outputs for control of external devices.
- Low voltage DC supply with NG DC Model
- Local Display and Sampling Pump Included as Standard
Applications
- Natural Gas
- Agriculture
- Waste and Landfill
- Biogas
CH4 Sensor Range
- 0 – 1%
- 0 – 5%
- 0 – 10%
- 0 – 30%
- 0 – 100%
- 0 – 100% Biogas
Calibrated in a background of air as standard.
Tailored for your measurement range and background gas requirement needs upon consultation
